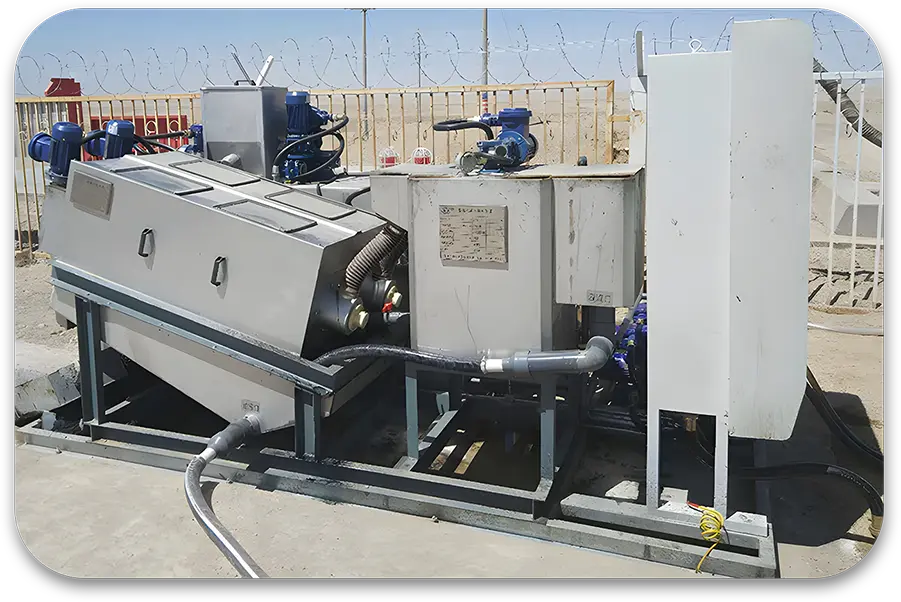

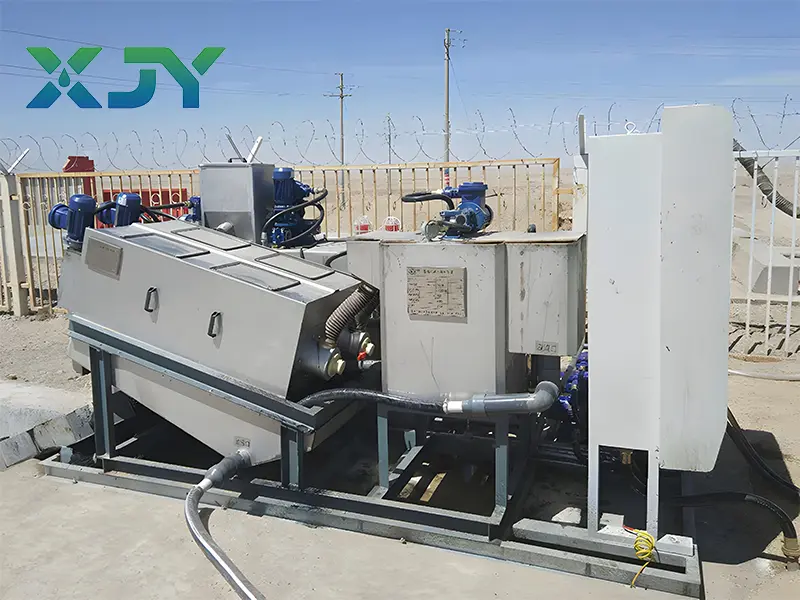

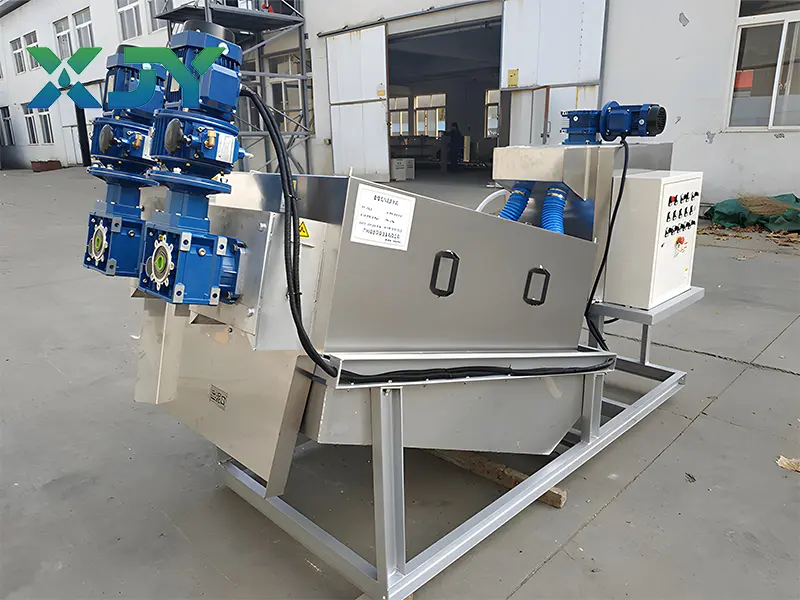

The spiral sludge dewatering machine represents a novel type of environmentally friendly, energy-saving, and highly efficient sludge treatment equipment. It finds extensive application in municipal sewage treatment projects as well as water treatment systems across various industrial sectors, including petrochemicals, light industry, chemical fiber, papermaking, and pharmaceuticals. This equipment has emerged as a crucial solution for effective sludge management, contributing to enhanced environmental protection and resource utilization in these industries.

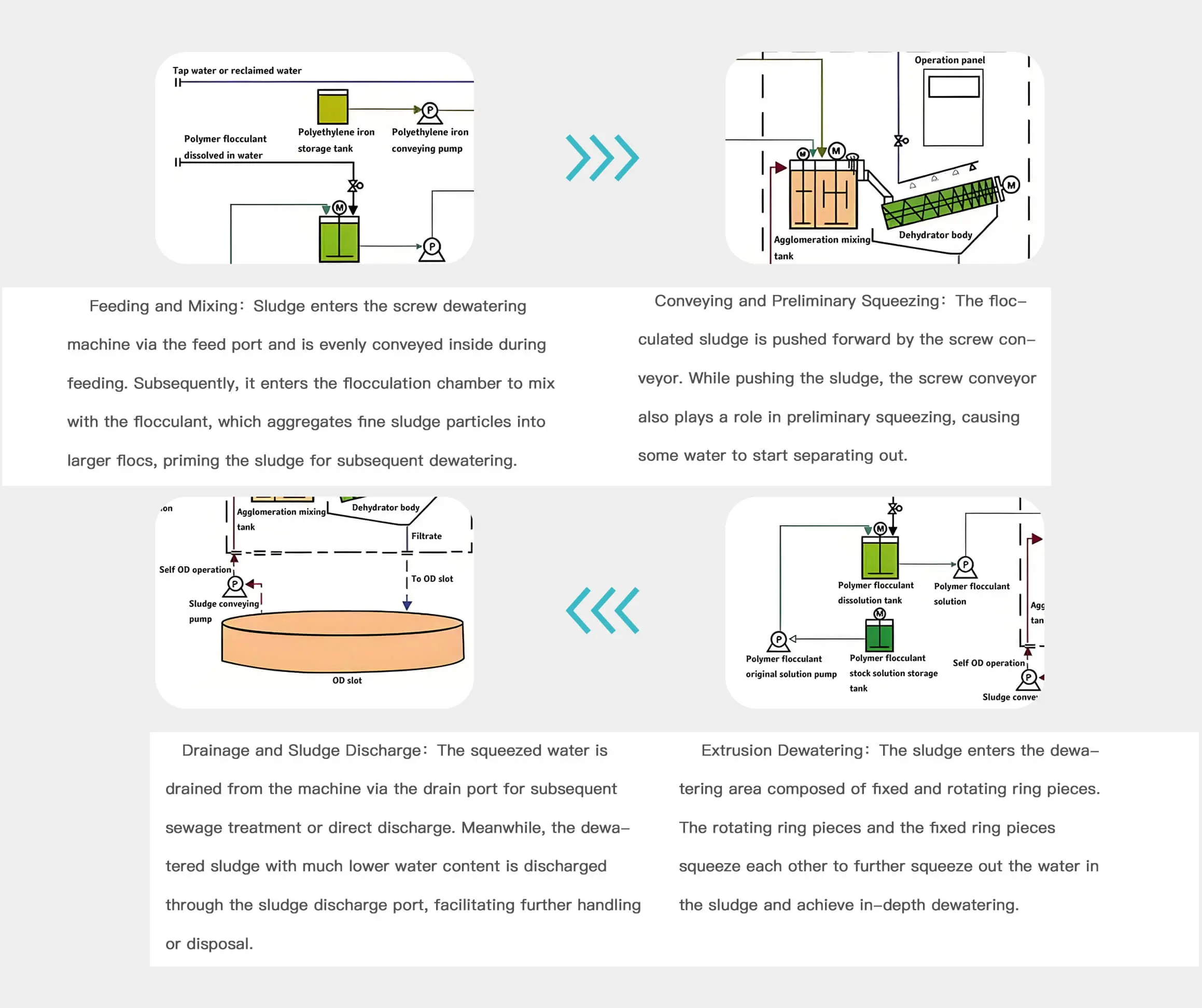

The screw stack dewatering machine has the functions of sludge thickening, dehydration and self-cleaning. When working, the spiral driving shaft rotates to make the multiple fixed and movable stacks on the periphery move relatively. Under the action of gravity, the sludge water is filtered out from the gaps between the stacks to achieve rapid thickening, reduce the sludge volume and improve the processing efficiency.
The concentrated sludge moves forward with the rotation of the spiral shaft, and due to the reduction of the pitch and the gap between the rings and the action of the back pressure plate, the water is squeezed out, increasing the solid content of the filter cake. At the same time, the movement between the fixed and movable rings ensures continuous self-cleaning.

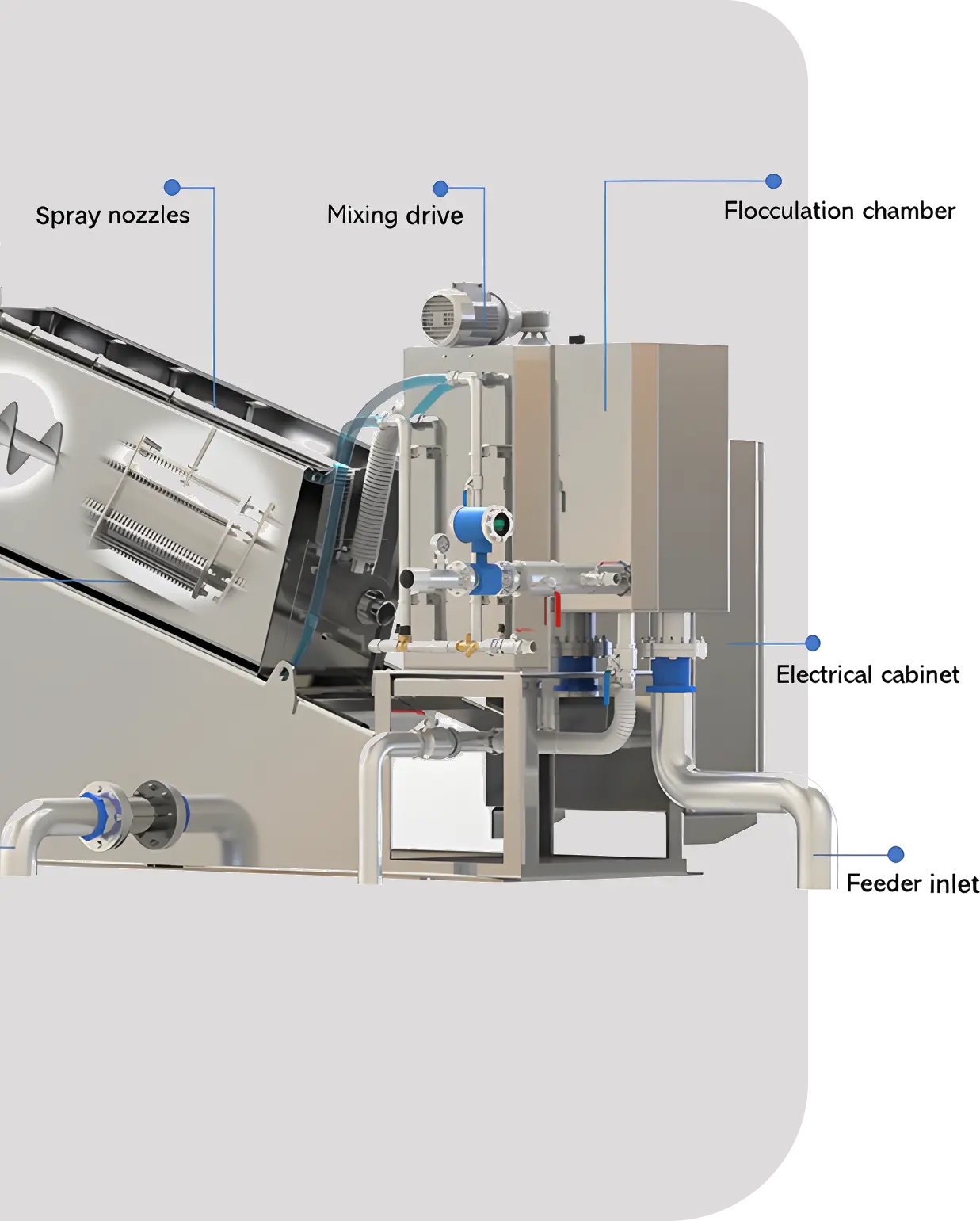

Adopts an integrated design with a compact structure that takes up minimal space. Suitable for various environments, especially locations with space constraints.
Uses fixed and rotating ring discs for squeeze dehydration, effectively reducing moisture content and achieving significant results.
High degree of automation. Operating parameters can be easily controlled and adjusted via the electrical cabinet.
Internal components like screw conveyors and ring plates are designed for quick disassembly and maintenance.
Handles various sludge types, including municipal and industrial waste. Flocculation chambers can be adjusted based on sludge characteristics.
Excellent sealing reduces odor emissions and leakage risks, improving the working environment and preventing secondary pollution.
Global delivery is available. Our integrated products are designed for independent installation, making the setup process convenient, simple, and easy to operate.
