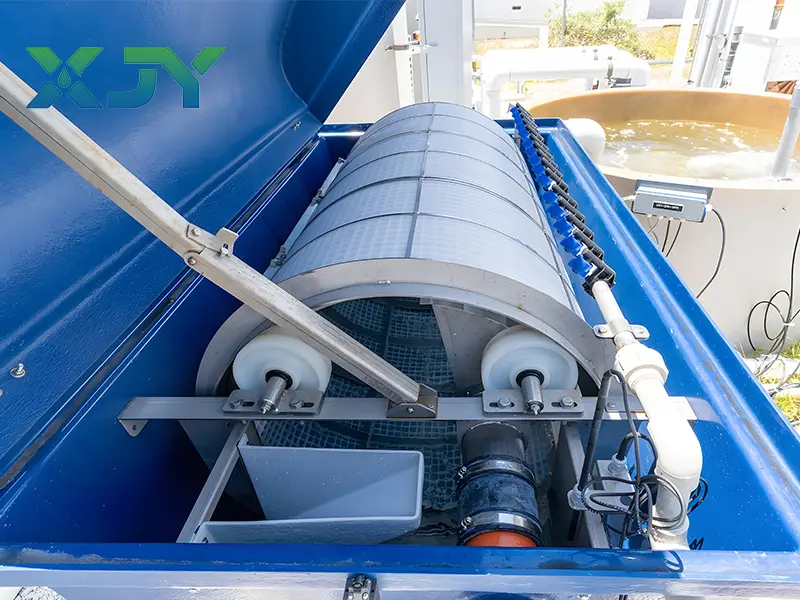

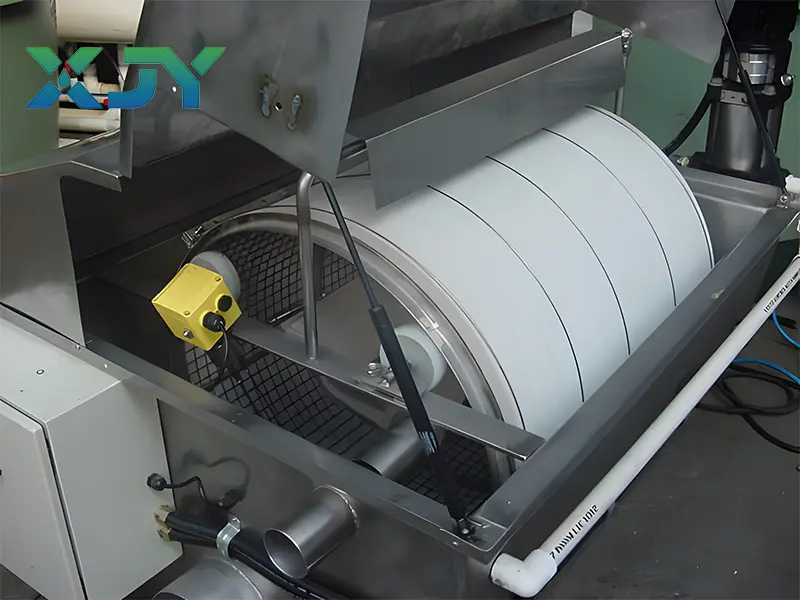

XJY's microfiltration system is a new type of rotary drum screen filtration equipment. It uses a microporous screen fixed on the rotary drum filter equipment to intercept solid particles in the water.The pore size of the XJY’s microfilter is about 0.1-100 microns, which can efficiently separate solid particles in the water. It plays a role in many fields such as sewage treatment, textile printing and dyeing wastewater treatment.

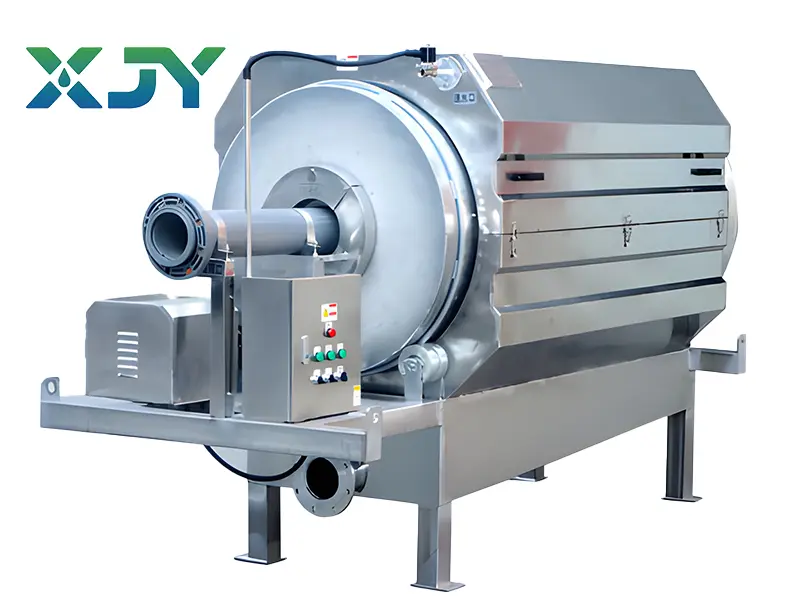

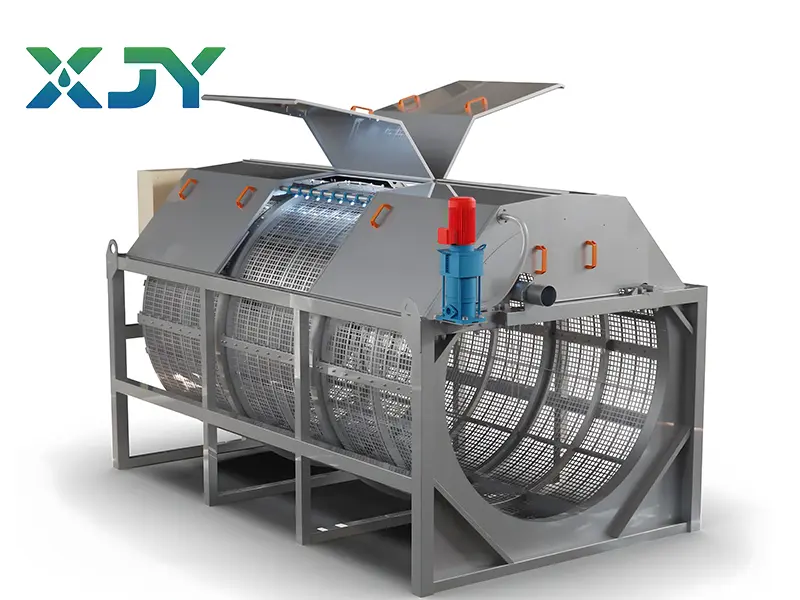

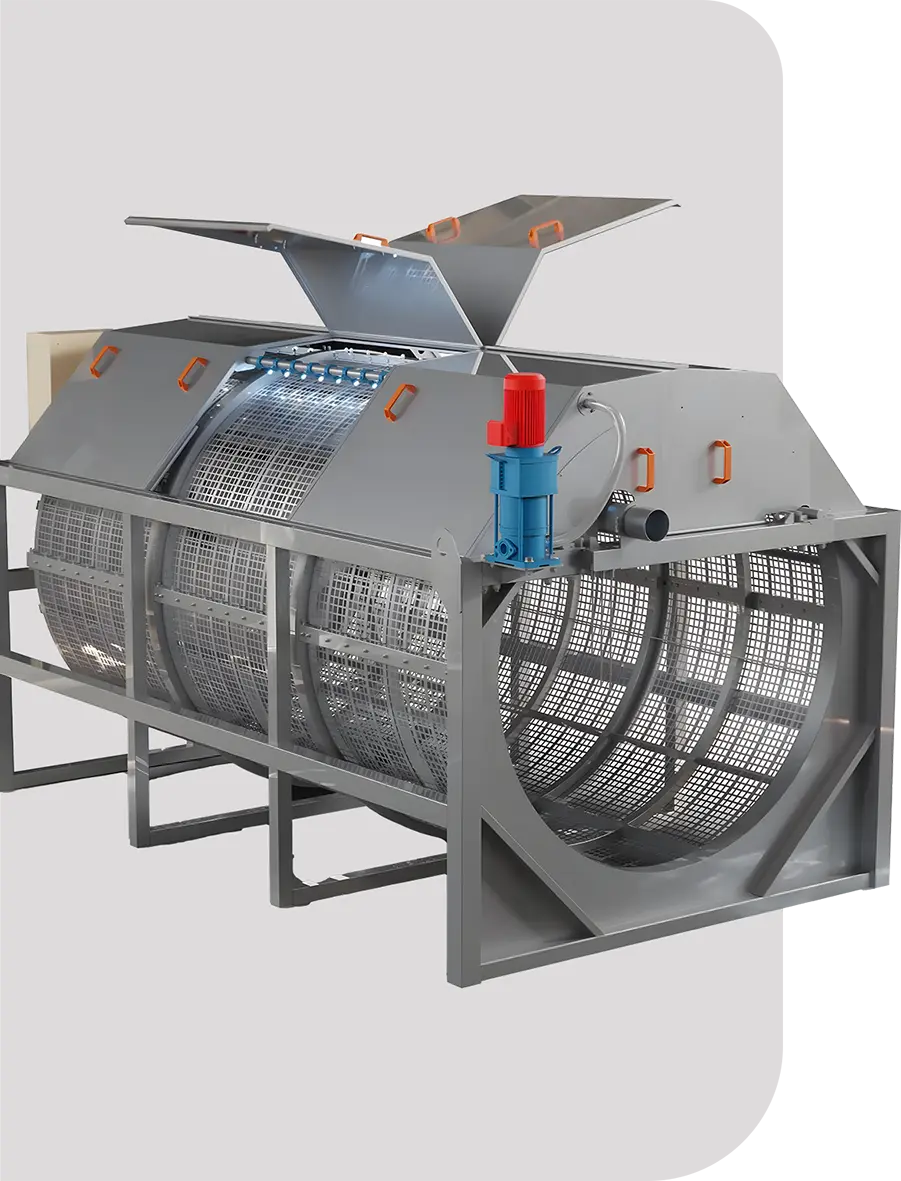

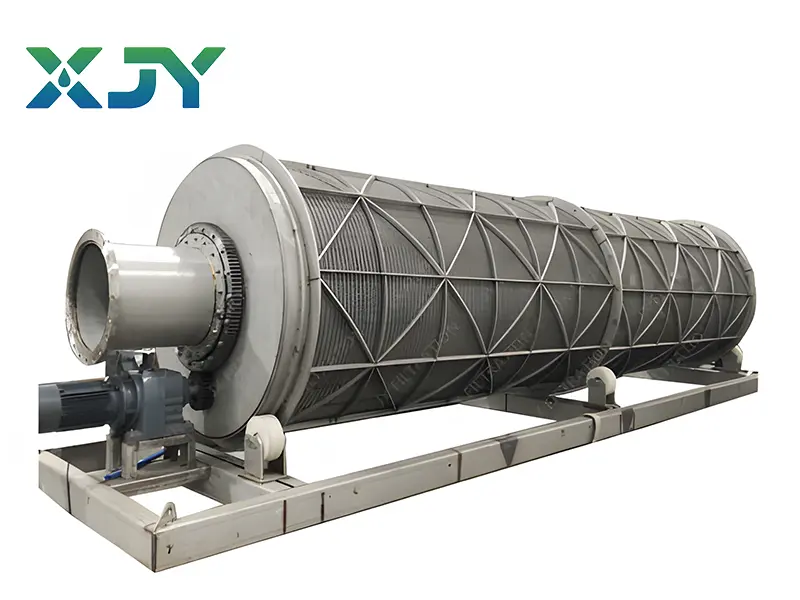

The microfilter is a new type of rotary drum screen filtration equipment. It uses a microporous screen fixed on the rotary drum filter equipment to intercept solid particles in the water to achieve solid-liquid separation.
The pore size is about 0.1-100 microns, which can efficiently separate solid particles. It plays a role in sewage treatment, textile printing and dyeing wastewater treatment, and is also used for raw water pretreatment in water plants and aquaculture water treatment.

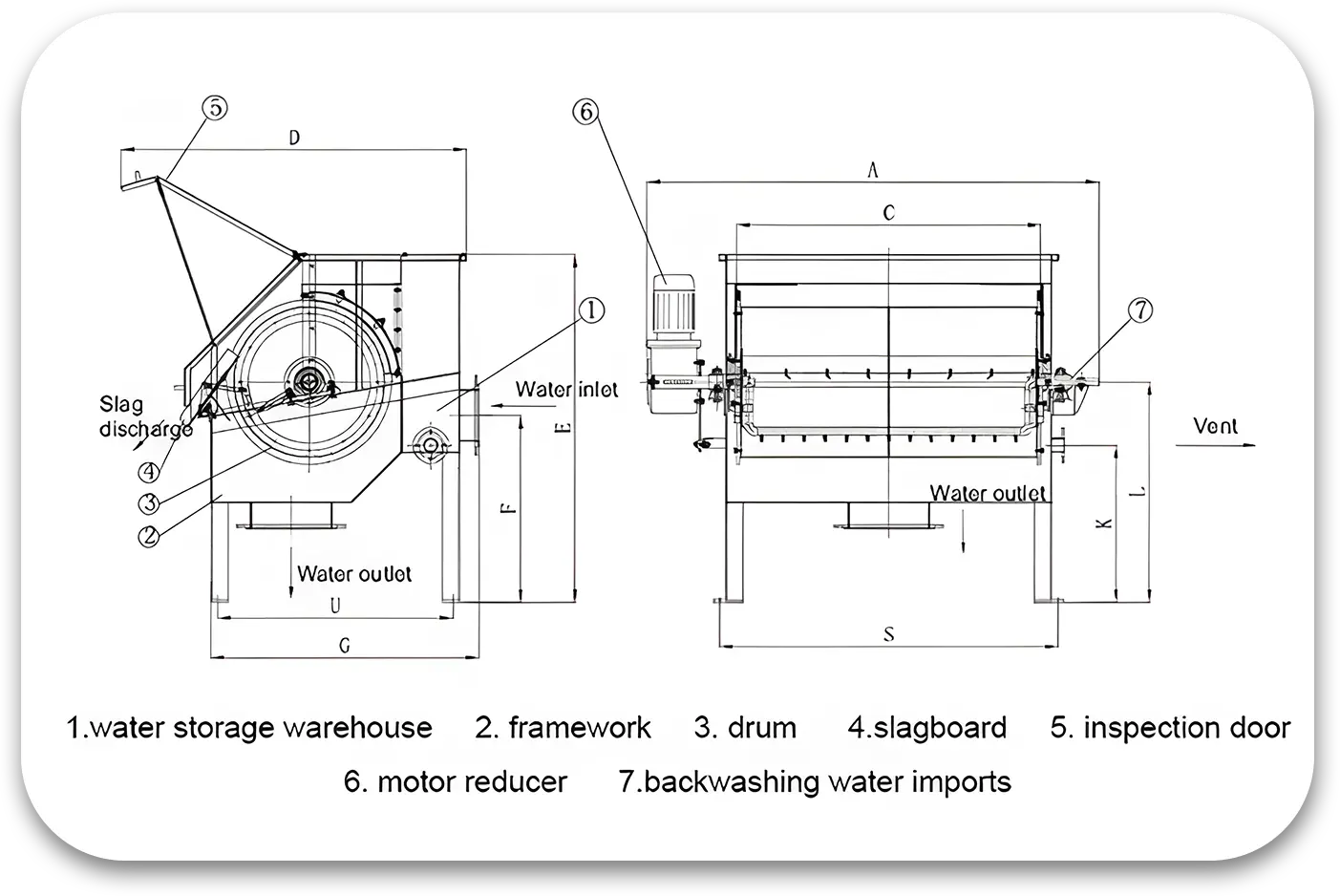

Microfiltration Equipment Process
Core Functions
High-Efficiency Filtration
With a pore size ranging from 0.1 to 100 microns, it effectively separates solid particles. In sewage treatment and textile industries, it conducts raw water pretreatment, purifies quality, and protects downstream equipment from damage. It also facilitates industrial wastewater reuse and resource recycling.

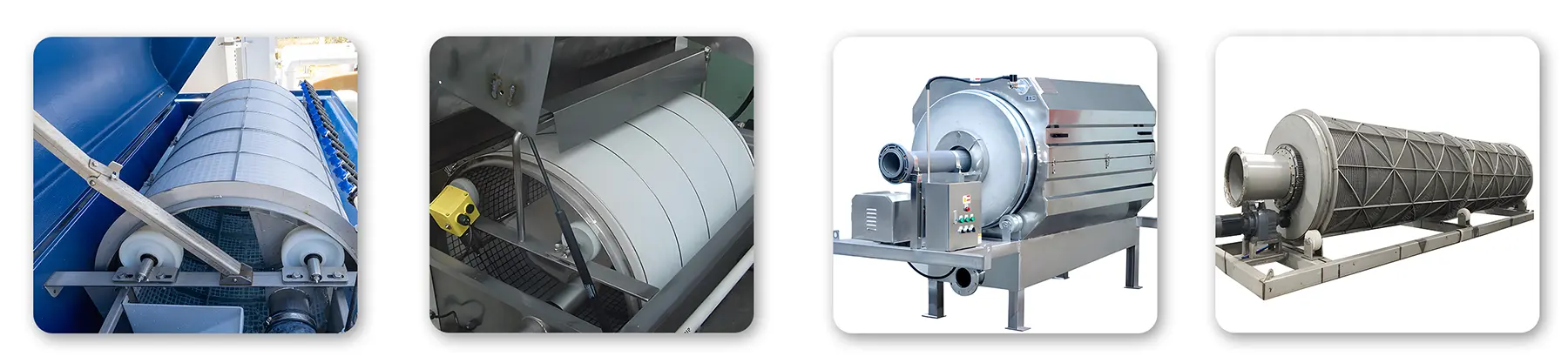

Product Details
Product Usage Scenarios
Comprehensive Characteristics & Advantages
1Precision Filtration Capacity
The 0.1 - 100 micron pore size intercepts particles from mud and pebbles to fibers, pulp, and dye particles, ensuring comprehensive purification.
2Filter Clogging Prevention
Equipped with an advanced automatic Backwashing Device, it triggers backwash when impurities reach a threshold, ensuring continuous operation.
3Low Energy Consumption
Powered by a motor reducer driving the drum rotation, the energy-efficient design minimizes operational costs.
4Resource Recovery (Paper & Food)
Recovers pulp fibers from papermaking wastewater and raw material particles from food processing, reducing waste and increasing economic benefits.
5Versatility
Provides auxiliary functions across multiple industries, acting as a crucial component in modern industrial wastewater management.
Delivery and Installation
Global Delivery
Global delivery is available. Our integrated products are designed for independent installation, making the process convenient, simple, and easy to operate.

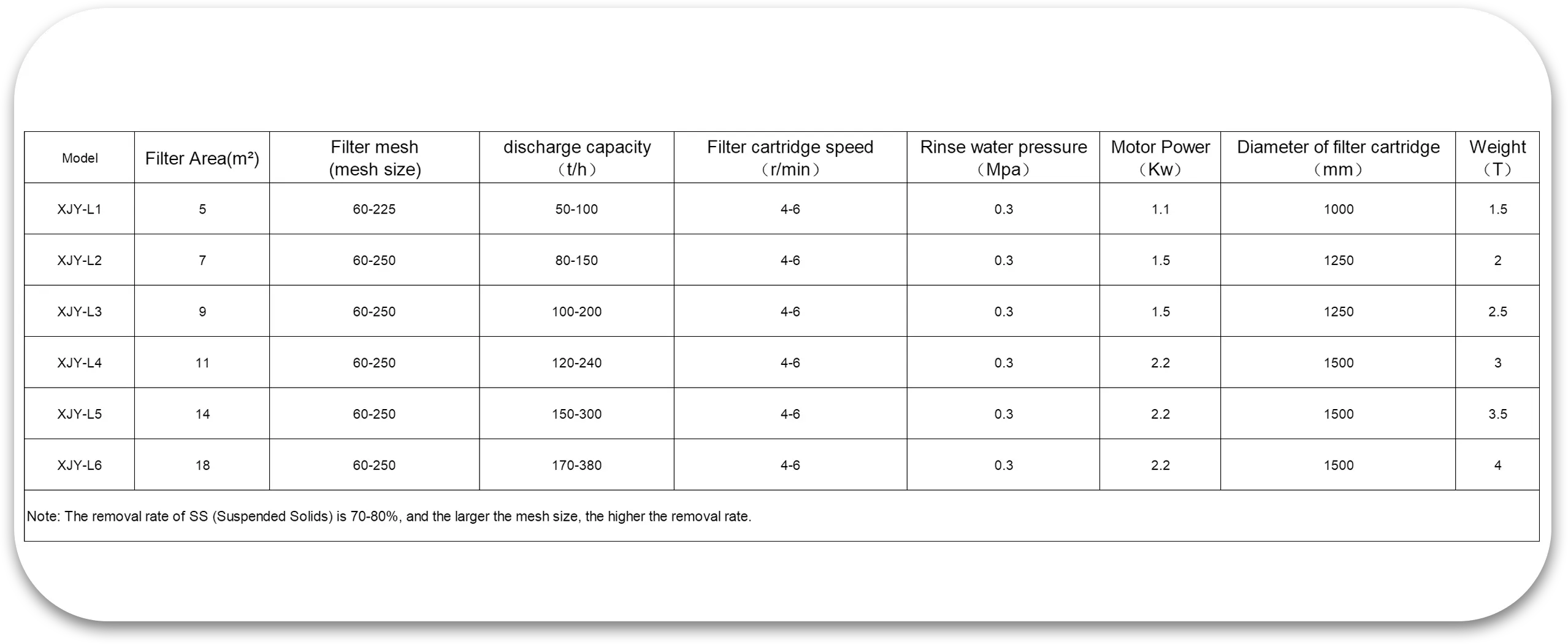

Technical Specifications
Frequently Asked Questions
What is the filtration precision of the microfiltration equipment?
The equipment offers a high-precision filtration range between 0.1 and 100 microns, allowing it to capture very fine particles and fibers.
How does the automatic backwashing system work?
The system automatically triggers a backwash cycle when the accumulation of impurities on the screen reaches a specific threshold, preventing clogging without stopping the filtration process.
In which industries is this equipment most effective?
It is widely used in sewage treatment, textile printing, papermaking for fiber recovery, food processing, and aquaculture water treatment.
Does the equipment consume a lot of electricity?
No, the microfilter is designed for low energy consumption, utilizing a motor reducer to drive the drum rotation efficiently.
Is the installation process complicated for international customers?
The equipment features an integrated design that allows for independent installation. It is engineered to be user-friendly and simple to operate globally.
